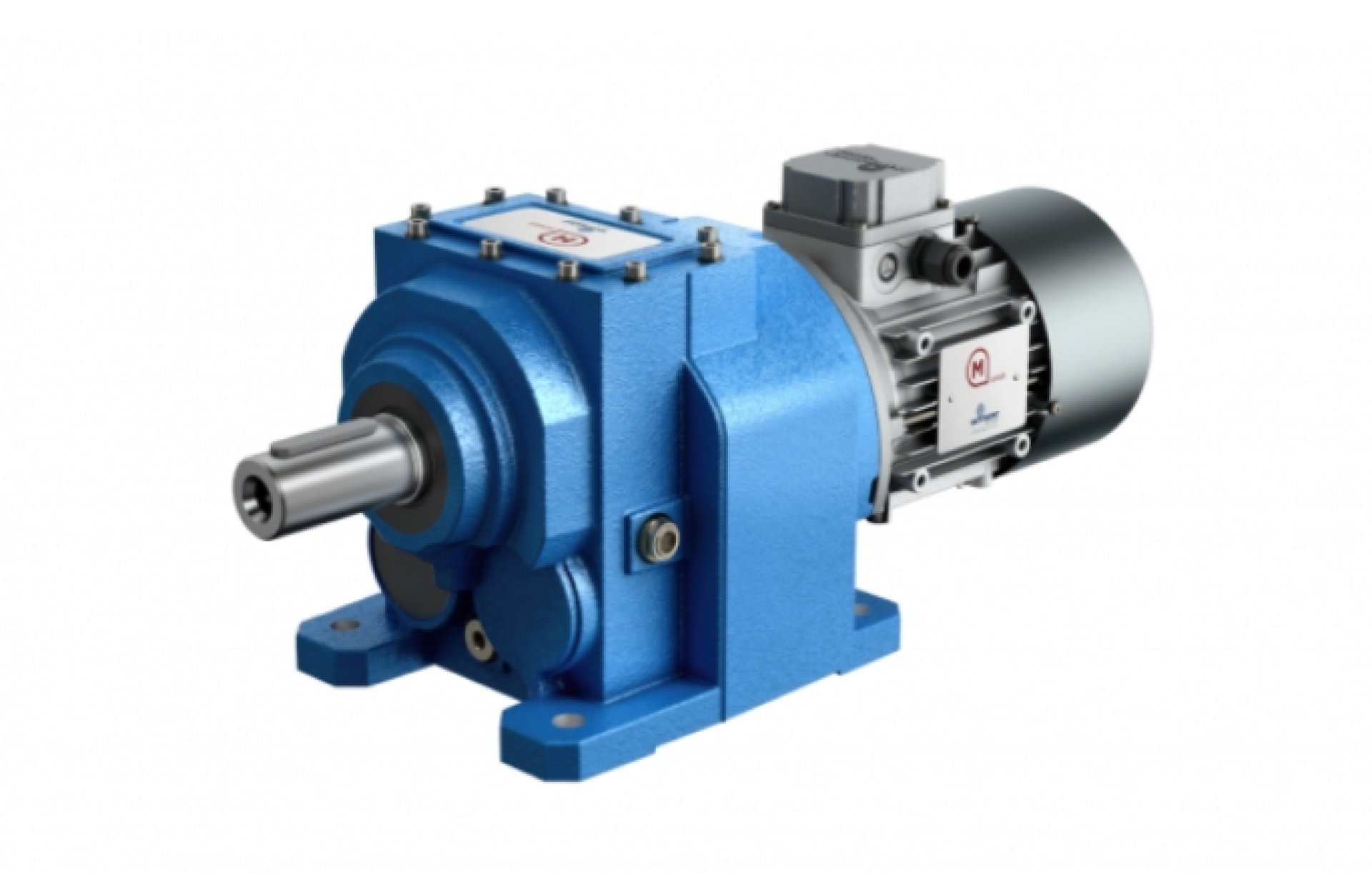

Helical gear reducers MOTOVARIO(copy)

Characteristics
Sizes: 030-040-050-060-080-100-125-140
Available versions: H - fitted for motor coupling, IH - with input shaft, CH - with compact motor, PH - fitted for motor coupling with flexible joint
Casing with feet, flange F or universal U
Power up to 45 kW
Gears hardened and tempered with shaved or ground profile
Gearing with 1, 2 and 3 reduction stages
Reduction ratios between 1,23 and 282,10
Torque max 8.000 Nm and admissible radial loads max 55.000 N
Cases in G200 grey cast iron for high strength and optimized with FEM analysis
Load capacity calculated to ISO 6336 and verified according to AGMA 2001
Painted with RAL 5010 blue epoxy-polyester powder
Accessories: output flange, backstop device, viton oil seals.
