Threephase IE2 & IE3 Motors

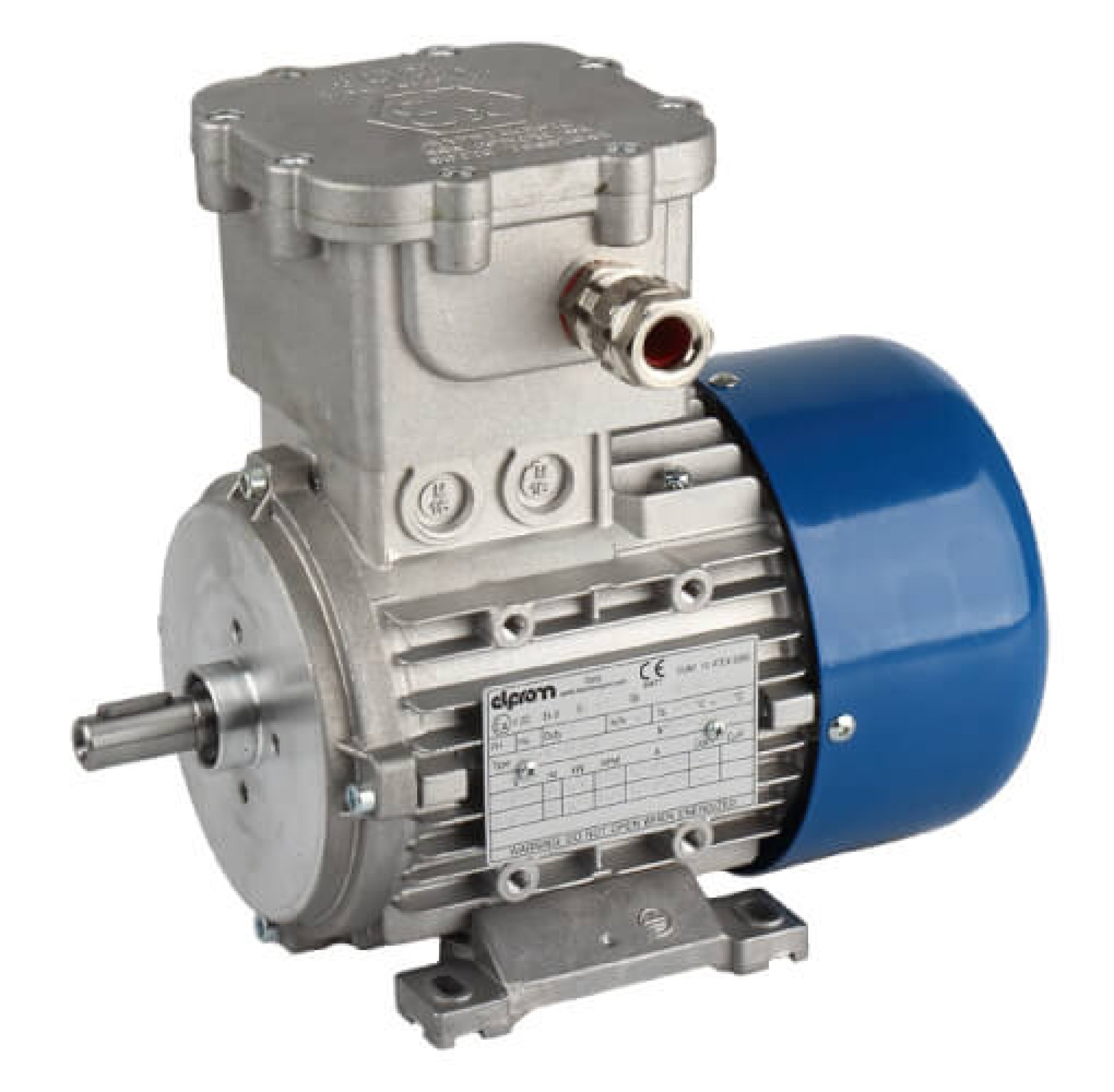

Explosion Proof Motor


IEC Standard

IE1, IE2, IE3 efficiency class
OD, OH, MD Series in three phase and single phase.
Certificate :  EUM1 10 ATEX 0350
Frame size from 56 to 180
Frequency 50 or 60 Hz
Duty S1
Altitude up to 1000 m. above sea level
Insulation class F (Class H is on request)
Degree of protection IP66
Presence of Gas : Zone 1 and Zone 2
Type of Protection  :  “Ex db” or “Ex dbeb”
Gas Group  :  IIC, IIB and IIA
Temperature Class  :  T3, T4, T5 (suitable also for T2, T1)
Ambient Temperature Range  :  -40°C +60°C for temperature class T3-40°C +60°C for temperature class T3
-40°C +60°C for temperature class T4
-40°C +40°C for temperature class T5
